ProFlame
Please note that many of these need a connection. Please reach out to us if you are unsure of what you need.
Description
The ProFlame is designed for industrial applications and offers an adjustable flame relay pull-in time, service dipswitch, adjust dipswitch, and raw flame signal measuring pins for advanced troubleshooting and signal analysis.

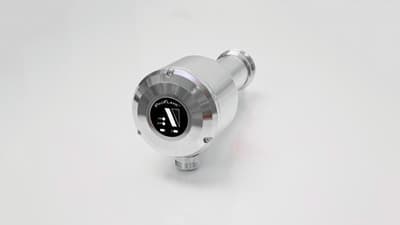

The ZEECO® ProFlame™ industrial grade flame scanner revolutionizes the industry by providing reliable flame detection and instant flame status for safer operation. Easy to configure, simple to set up, the Model ZPF-110 (II 2G EExd IIC T6) is uniquely designed for use in Zone 1 hazardous areas.
Inventory
Displaying prices & availability for Ohio, United States in CAD. Change location.
Models matching criteria: 16
ProFlame ZPF-120: w/ 1 sec FFRT view more
ProFlame ZPF-120 UV scanner, w/ 1 sec FFRT, adjustable gain and frequency for adapting to single burner applications, duct burners and small multiple burner applications. Zone 2: Class1, Division 2, Groups A, B, C, D; EEx nAnC IIC T6; NEMA4X, IP67. Temp rating: -40C to 75C. 048-001-320x process connection required.
4 In Stock
$3,422.03 CAD
Does not ship to OH, United States
ProFlame ZPF-130: w/ 1 sec FFRT view more
ProFlame ZPF-130 UV Scanner, w/ 1 sec FFRT, adjustable gain and frequency for adapting to single burner applications, duct burners and small multiple burner applications. NEMA4X, IP67. Temp rating: -40C to 75C.
7 - 10 days
$2,849.36 CAD
Does not ship to OH, United States
ProFlame ZPF-130: w/ 3 sec FFRT view more
ProFlame ZPF-130 UV scanner, w/ 3 sec FFRT, adjustable gain and frequency for adapting to single burner applications, duct burners and small multiple burner applications. NEMA4X, IP67. Temp rating: -40C to 75C
7 - 10 days
$2,849.36 CAD
Does not ship to OH, United States
ProFlame ZPF-220: w/ 1 sec FFRT view more
ProFlame ZPF-220 IR scanner, w/ 1 sec FFRT, adjustable gain and frequency for adapting to solid fuel or saturated steam applications. Zone 2: Class 1, Division 2, Groups A, B, C, D; EEx nAnC IIC T6; NEMA4X, IP67. Temp rating: -40C to 65C.
7 - 10 days
$3,422.03 CAD
Does not ship to OH, United States
ProFlame ZPF-220: w/ 3 sec FFRT view more
ProFlame ZPF-220 IR scanner, w/ 3 sec FFRT, adjustable gain and frequency for adapting to solid fuel or saturated steam applications. Zone 2: Class 1, Division 2, Groups A, B, C, D; EEx nAnC IIC T6; NEMA4X, IP67. Temp rating: -40C to 65C.
7 - 10 days
$3,422.03 CAD
Does not ship to OH, United States
ProFlame ZPF-120: Enhanced: w/ 1 sec FFRT view more
ProFlame ZPF-120 Enhanced UV Scanner, w/ 1 sec FFRT, adjustable gain and frequency for adapting to Vapor Combustors or Hood Mounted Kiln applications. Zone 2: Class 1, Division 2, Groups A, B, C, D; EEx nAnC IIC T6; NEMA4X, IP67. Temp rating: -40C to 75C. 0
7 - 10 days
$3,422.03 CAD
Does not ship to OH, United States
ProFlame ZPF-120: w/ 3 sec FFRT view more
ProFlame ZPF-120 UV Scanner, w/ 3 sec FFRT, adjustable gain and frequency for adapting to single burner applications, duct burners and small multiple burner applications. Zone 2: Class 1, Division 2, Groups A, B, C, D; EEx nAnC IIC T6; NEMA4X, IP67. Temp rating: -40C to 75C. 048-001-320x process connection required.
7 - 10 days
$3,422.03 CAD
Does not ship to OH, United States
ProFlame ZPF-120: Fiber Optic: w/ 1 sec FFRT view more
ProFlame ZPF-120 Fiber Optic UV Scanner, w/ 3 sec FFRT, adjustable gain and frequency for adapting to Kiln or other fiber optic based applications. Zone 2: Class 1, Division 2, Groups A, B, C, D; EEx nAnC IIC T6; NEMA4X, IP67. Temp rating: -40C to 75C.
7 - 10 days
$3,868.98 CAD
Does not ship to OH, United States
ProFlame ZPF-120: Fiber Optic: w/ 3 sec FFRT view more
ProFlame ZPF-120 Fiber Optic UV Scanner, w/ 3 sec FFRT, adjustable gain and frequency for adapting to Kiln or other fiber optic based applications. Zone 2: Class 1, Division 2, Groups A, B, C, D; EEx nAnC IIC T6; NEMA4X, IP67. Temp rating: -40C to 75C. Fiber Optic Carrier required for complete assembly. 048-001-3203 process connection required.
7 - 10 days
$3,868.98 CAD
Does not ship to OH, United States
ProFlame ZPF-120: Enhanced: w/ 3 sec FFRT view more
ProFlame ZPF-120 Enhanced UV Scanner, w/ 3 sec FFRT, adjustable gain and frequency for adapting to Vapor Combustors or Hood Mounted Kiln applications. Zone 2: Class 1, Division 2, Groups A, B, C, D; EEx nAnC IIC T6; NEMA4X, IP67. Temp rating: -40C to 75C.
7 - 10 days
$4,343.88 CAD
Does not ship to OH, United States
ProFlame ZPF-110: w/ 1 sec FFRT view more
ProFlame ZPF-110 UV Scanner, w/ 1 sec FFRT, adjustable gain and frequency for adapting to single burner applications, duct burners and small multiple burner applications. Zone 1: Class 1, Division 1&2, Groups A, B, C, D; EExd IIC T6; NEMA4X, IP66. Temp rating: -40C to 75C. Integral 6m cable.
7 - 10 days
$4,860.67 CAD
Does not ship to OH, United States
ProFlame ZPF-110: w/ 3 sec FFRT view more
ProFlame ZPF-110 UV Scanner, w/ 3 sec FFRT, adjustable gain and frequency for adapting to single burner applications, duct burners and small multiple burner applications. Zone 1: Class 1, Division 1&2, Groups A, B, C, D; EExd IIC T6; NEMA4X, IP66. Temp rating: -40C to 75C. Integral 6m cable.
7 - 10 days
$4,860.67 CAD
Does not ship to OH, United States
ProFlame ZPF-110: w/ 1 sec FFRT: 6m cable view more
ProFlame ZPF-110 UV Flame Scanner, w/ 1 sec FFRT, adjustable gain and frequency for adapting to single burner applications, duct burners and small multiple burner applications. Zone 1: Class 1, Division 1&2, Groups A, B, C, D; EExd IIC T6; NEMA4X, IP66. Temp rating: - 40C to 75C. Integral 6m cable with conduit adapter.
7 - 10 days
$4,888.61 CAD
Does not ship to OH, United States
ProFlame ZPF-110: w/ 3 sec FFRT: 6m cable view more
ProFlame ZPF-110 UV Flame Scanner, w/ 3 sec FFRT, adjustable gain and frequency for adapting to single burner applications, duct burners and small multiple burner applications. Zone 1: Class 1, Division 1&2, Groups A, B, C, D; EExd IIC T6; NEMA4X, IP66. Temp rating: - 40C to 75C. Integral 6m cable with conduit adapter
7 - 10 days
$4,888.61 CAD
Does not ship to OH, United States
ProFlame ZPF-210: w/ 1 sec FFRT view more
ProFlame ZPF-210 IR scanner, w/ 1 sec FFRT, adjustable gain and frequency for adapting to solid fuel or saturated steam applications. Zone 1: Class 1, Division 1&2, Groups A, B, C, D; EExd IIC T6; NEMA4X, IP66. Temp rating: -40C to 65C. 048-001-320x process connection required.
7 - 10 days
$5,153.99 CAD
Does not ship to OH, United States
ProFlame ZPF-210: w/ 3 sec FFRT view more
ProFlame ZPF-210 IR scanner, w/ 3 sec FFRT, adjustable gain and frequency for adapting to solid fuel or saturated steam applications. Zone 1: Class 1, Division 1&2, Groups A, B, C, D; EExd IIC T6; NEMA4X, IP66. Temp rating: -40C to 65C. 048-001-320x process connection required.
7 - 10 days
$5,153.99 CAD
Does not ship to OH, United States
